Introduction
return to top

LED Light is becoming one of the major lighting solutions in industry. There are many different uses of LEDs in many different application.
This guide will assist you with project ideas, tools required and information required to build your LED project.

Tools Required:

Soldering Iron
For non-demanding purposes, an electric powered (20-40W) soldering iron easly purchased from Dick Smith for under $10. If mobility becomes an issue or you want to work around the car without having to work your way around the power cable, you might want to get a butane gas soldering iron and look for the Iroda brand.

Solder***
I recommend a general purpose electronics grade flux-cored 60/40 (tin/lead) solder. There are non-lead containing solder but sometimes don't flow as well as the leaded ones do.

(***Precaution: Lead vapour is hazadous to your health, do your soldering work in a well ventilated environment, or even better, buy yourself a small fan and blow the fumes elsewhere)

Wires/Cables
As LEDs generally don't use much current and is generally a low voltage/low current circuit, wire selection isn't normally an issue. However, its always better to check the current running through the circuit. For normal operations, a wire with >1Amps rating is in most cases sufficient.

Workspace
A good bench is always good, preferably something not conductive if you want to test your circuit down the track

Power Source
A good idea is to have a good 12V DC power source ready for testing your LEDs. Some options: Old car battery, a charger with a 12VDC output or a small 12VDC battery.

Multimeter
A good tool to test the voltage/current/resistors - a must for a electronics project!

Components
Now we've got everything covered, what's left is the components and this is what our store provides you with. Whether it be LEDs, Resistors or PC Boards. Keep reading this guide and you'll learn how to wire up a LED circuit.

Project ideas:

There are a whole variety of things you can do with LEDs, Here are just some ideas!

Car Lighting:
Map/Dome/Boot/Licence Plate Lights, Turn Indicators, Tail Lights or just General Illumination

RC Vehicles:
From the headlights to the tail lights or anywhere you want them to light up

Fish Tank:
For mood light or general illumination (Precaution: Water)

PC/Computer:
Can use LEDs to light up your PC Case

return to top
So What exactly is a Light Emitting Diode (LED)?

a semiconductor device that has the ability to emit light
able to deliver low power consumption compared with traditional incandescent bulbs
long-life when used appropriately (>50,000 hours)
always use resistors or a LED driver when powering LEDs
never look directly at an operating LED as it may damage your vision
comes in variety of viewing angles and intensity which are used in various applications

So what is LED Brightness or MCD or Lumens?

LEDs are commonly described in terms of their millicandellas or MCD for short. MCD is a measure of brightness at the light source. However that's not the whole story. LEDs are also come in a variety of viewing angles or in other words how wide the light is projected. This is what determines the Luminous flux of the LED which is measured in Lumens (Lm). Lumens is the measure of light that actually falls on a plane or surface.

Below is a MCD to Lumens calculator providing that you know the viewing angle.

MCD - Lumens Calculator

millicandellas(mcd) Half Angle* (degrees)

Total Light Output

Lumens

*Half Angle = Viewing Angles / 2

So when to use what type of LED? Below is a quick overview of what type of application different LEDs are used.
Wide angle (100-180 degrees) - for basic illumination and backlight where a wide viewing area is required - Link (new window)

Narrow Angle (20-40 degrees) - for indicators or strobe lights or where a narrow but intense beam is required - Link (new window)

Here's a comparison between wide and narrow angle LEDs

Wide Angle 180 Degrees
230mcd @ 180 Deg.

Narrow Angle 20 Degrees
8000mcd @ 20 Deg.

Now you can work out using the calculator which LED has the greater Luminous Flux or in other words, the actualy light that falls on a sufrace. (Answer: Wide angle: 1.45 lumens, Narrow angle: 0.76 lumens)

So depending on your application, you may want to use a different type of LEDs. If you have any queries regarding which LEDs to choose, do not hesitate to send me an email me.

return to top

For basic soldering techniques please visit Link or PDF

On a LED, the long leg is usually the positive terminal
resistors can be wired anywhere, just as long as they are in the circuit

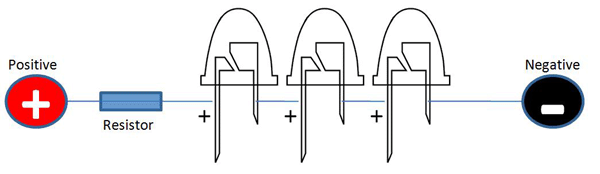

Here's an schematic example:

LED Wiring Diagram

12V(positive terminal) ----Resistor------LED------LED------LED-----(negative terminal)

Here's a list of the different LED Types we have in our

3mm 30 Deg. - blue, red, white - Link
4.8mm Wide angle 120 Deg. - blue, red, white - Link
4.8mm Ultra Wide angle 180 Deg. - blue, red, amber, white - Link
5mm High Luminous 20 Deg. - blue, red, amber, white, cyan, UV - Link
3mm Superflux 100 Deg. - blue, red, amber, white - Link
3mm Hi Power Superflux 80 Deg. - blue, red, amber, white - Link
3 Watt Cree XR-E High Power LED 120-140 Deg. - white - Link

Resistors Reference Table
return to top

The following is the recommended resistor usage for LED circuits using 12V @ 20mA
Resistors are 1/4 watt unless otherwise indicated
It is NOT recommended to wire single LEDs unless you use a 1/2 watt or greater resistor (or else the resistor will overheat and burn)

For 3.3 volts LEDs (blue, white, green etc.)
1 LED - 470 ohms (1/2 watt)
2 LEDs - 270 ohms
3 LEDs - 120 ohms
4 or more LEDs - Use multiple arrays of LEDs

For 2.0 volts LEDs (red, amber etc.)
1 LED - 560 ohms (1/2 watt)
2 LEDs - 470 ohms (1/2 watt)
3 LEDs - 330 ohms
4 LEDs - 220 ohms
5 LEDs - 100 ohms
6 or more LEDs - Use multiple arrays of LEDs

ALL our LED products comes with 5x Free 1/4 Watt Resistors
3.3volts @ 20mA LEDs - 120 ohms
2.0volts @ 20mA LEDs - 330 ohms
Hi Power Superflux LEDs comes with 3x Free 1 Watt Resistors
3.3volts @ 50mA LEDs - 47 ohms
2.0volts @ 70mA LEDs - 100 ohms
Other resistor values are available on request

Note: Some of our LEDs have rated currect between 20-100mA, which means they can run at a higher current if appropiate resistors are used

Thanks for taking the time to read our LED Help Guide.
We hope this has helped you in some way.
Should you have any questions do not hesitate to contact me !
